SPECIFICATIONS

Brand Name: LUNYEE

Certification: ce

Hign-concerned Chemical: None

Origin: Mainland China

Advantage

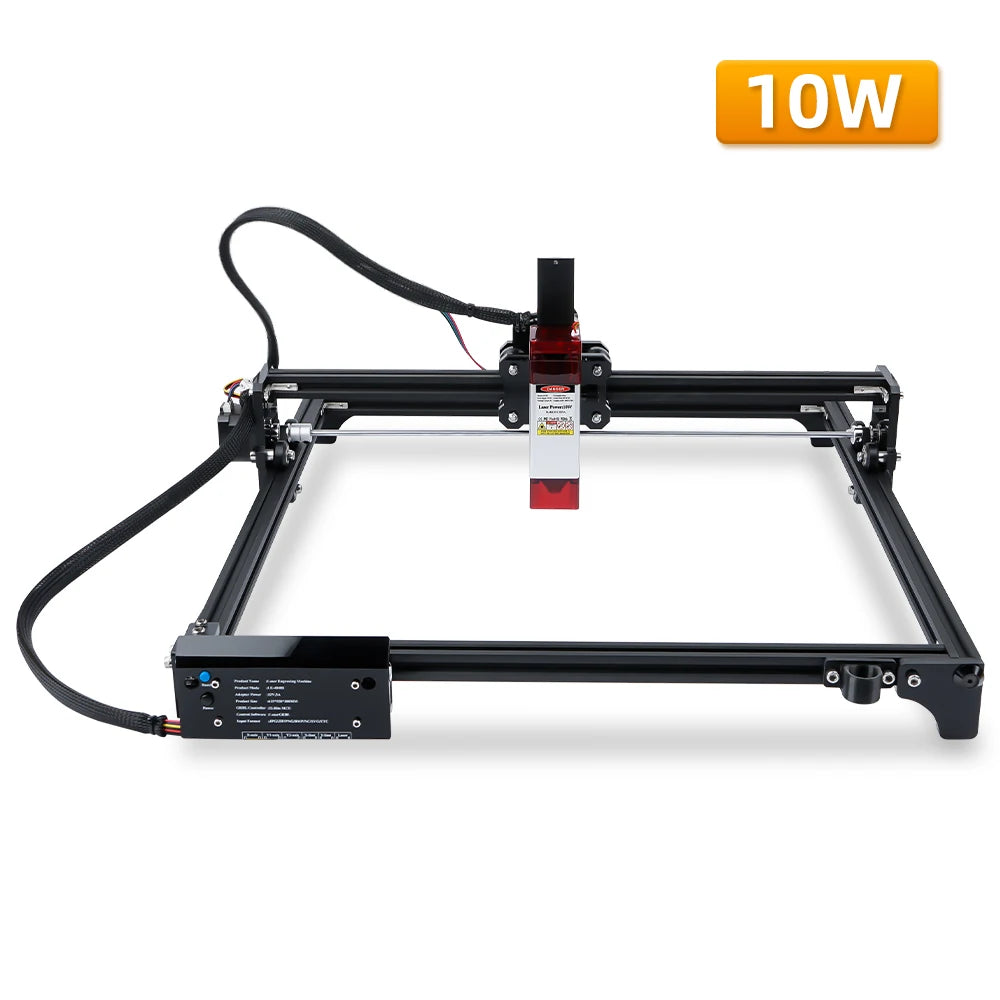

• Model: 400*400mm Laser Engraver Machine

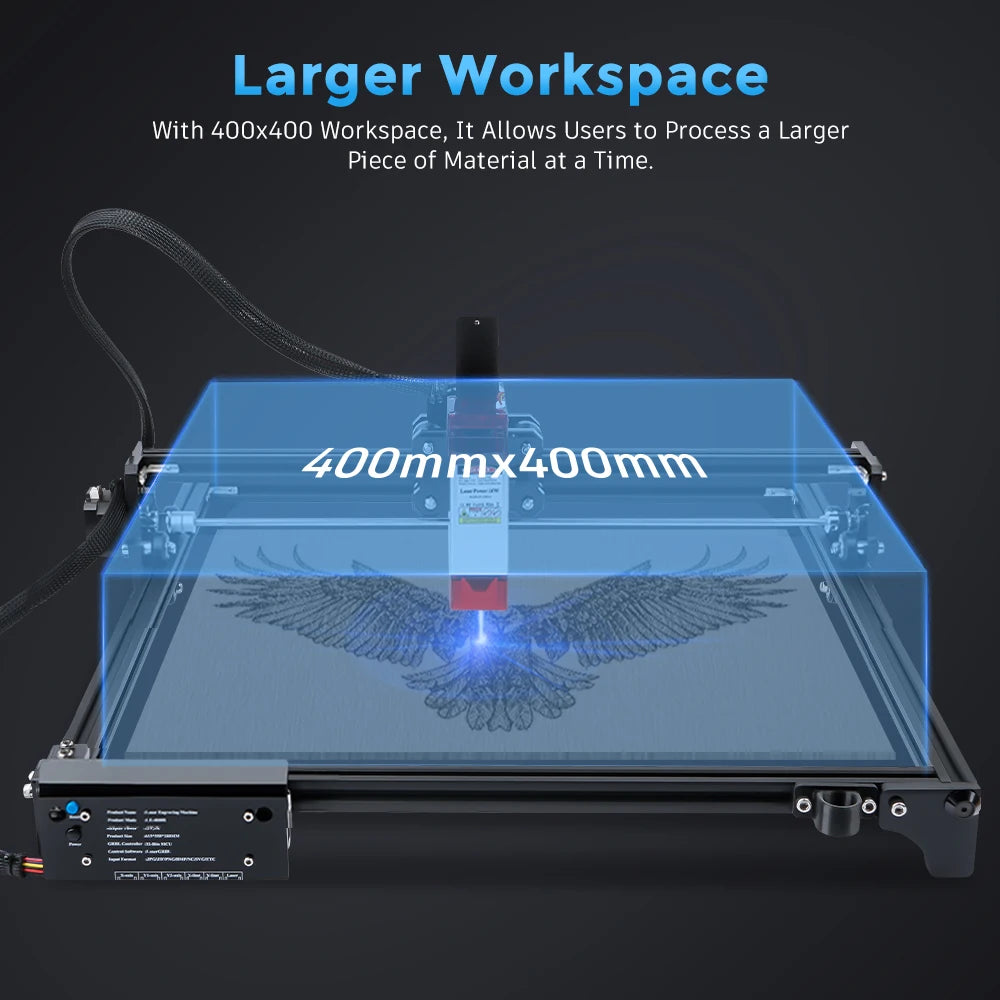

• Working area: 400*400mm  MAX

 Install 40mm laser : 380*380mm working area

• 2axis controller

32 bits motherboard with 32 Bits MCU ，It can process 32 instructions at a time, greatly increasing the file processing speed

• The Maximum speed 10000mm/min

( If do not consider the laser carving result, the velocity of movement could be as high as 60000mm/min)

• Limit switch:  XY axis limit switch

Protect the normal operation of the machine

• Exposure Duration Detection and Limitation

If laser engraver is under control without anybody notice, it will be turned on to make the machine stop working.

• Machine wire management

 Make the machine cable clean and not entangled, more beautiful and convenien

• Semi-assembled delivery

Reduce assembly time and be more friendly to newcomers

• Laser Wavelength: 445nm (blue viole)

• Optical Power Output：5.5W/10W

• Drive mode: External ACC constant current drive

• Cooling Method: Forced air cooling

• Operating Voltage: 12V DC

• Shell Material: Aluminum,Surface Anodized

• Module Material: Copper

• Life Time:16000 hours

• Working Temperature:-40-75Celsius

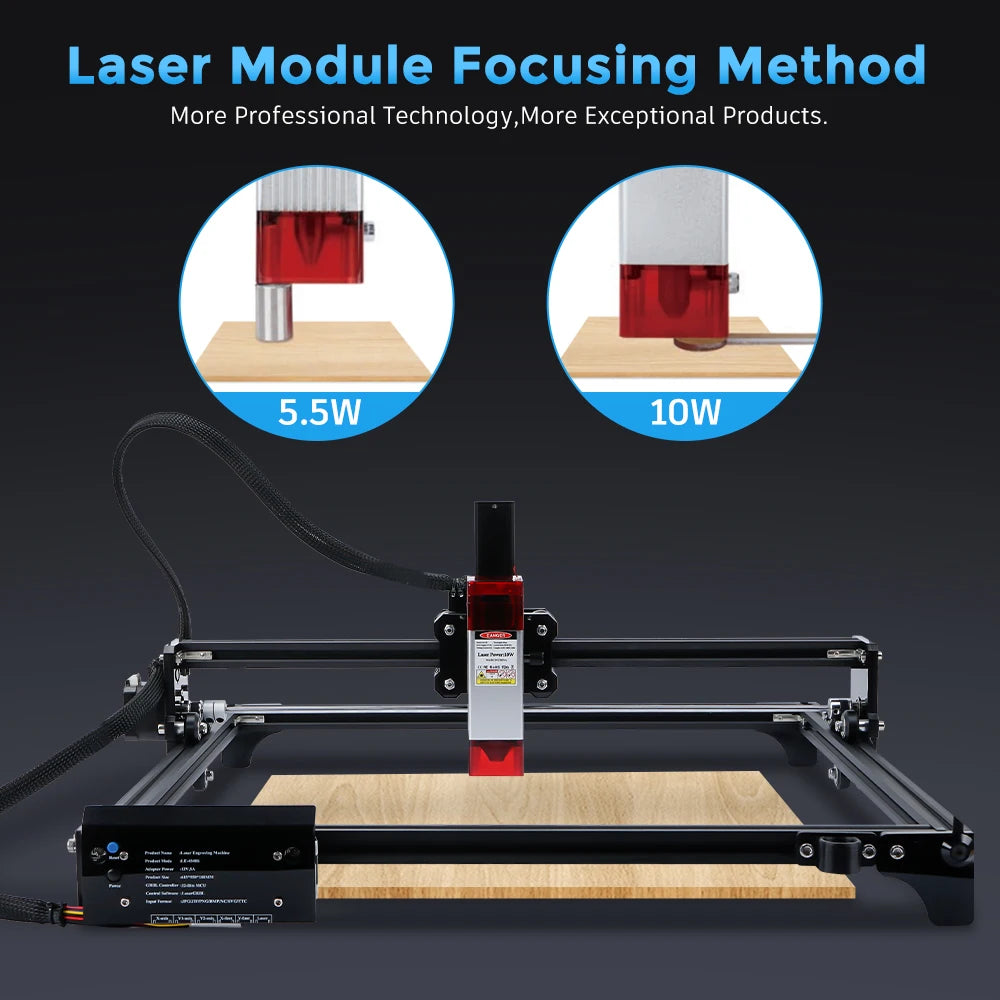

• Focal Length: 5.5W is 20mm（a silver part）, 10W is 3mm （a acrylic plate）
