SPECIFICATIONS

Brand Name: PowMr

High-concerned chemical: None

Model Number: MC4X6-B-100m

Origin: Mainland China

Type: Solar Cables

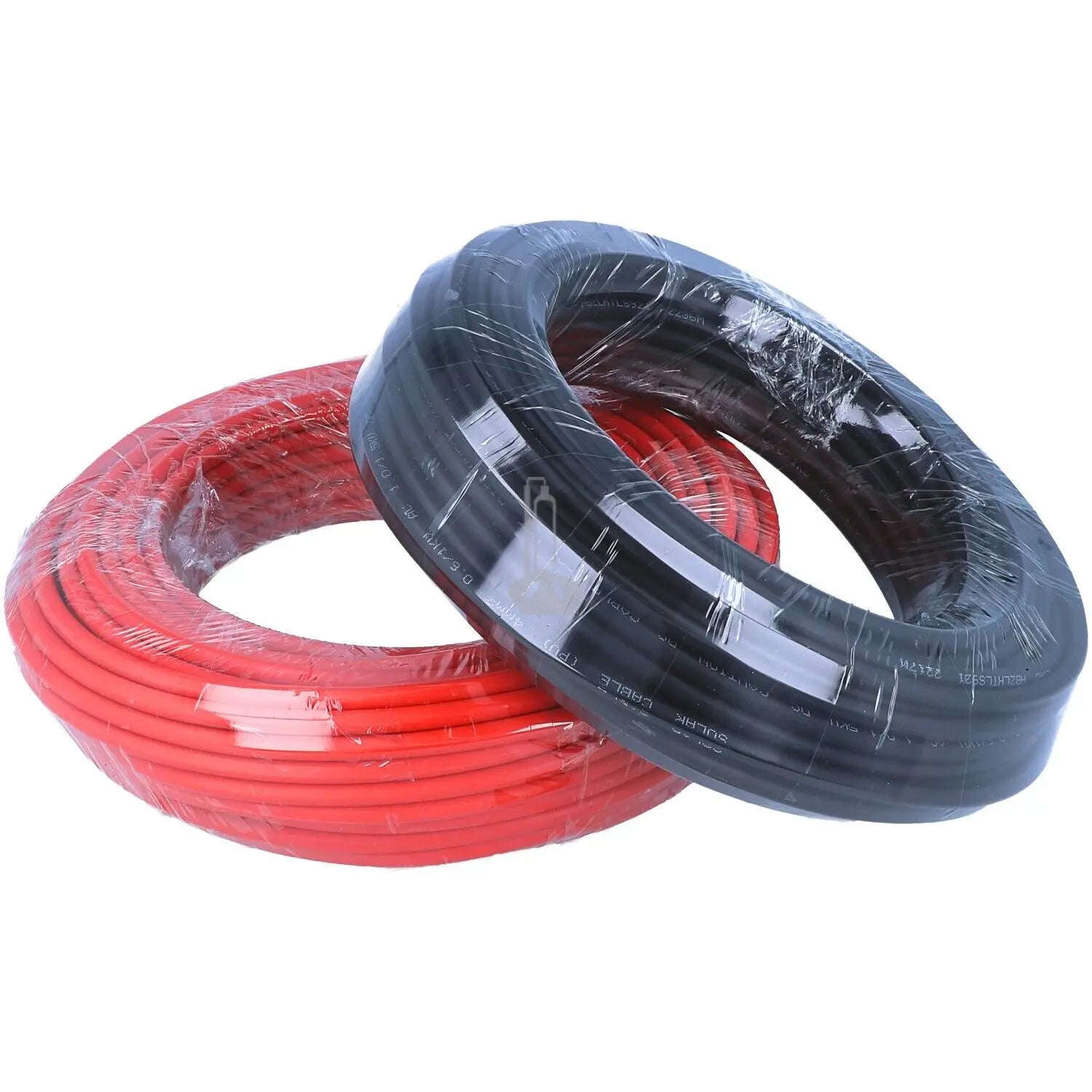

PowMr 30m 100m Solar PV Cable 6mm² Black Solar PV Wire IP68 Extension Solar System Photovoltaic System TUV 10AWG No Connect USA

Information

• Brand:PowMr

• Product type: Solar panel extension cable

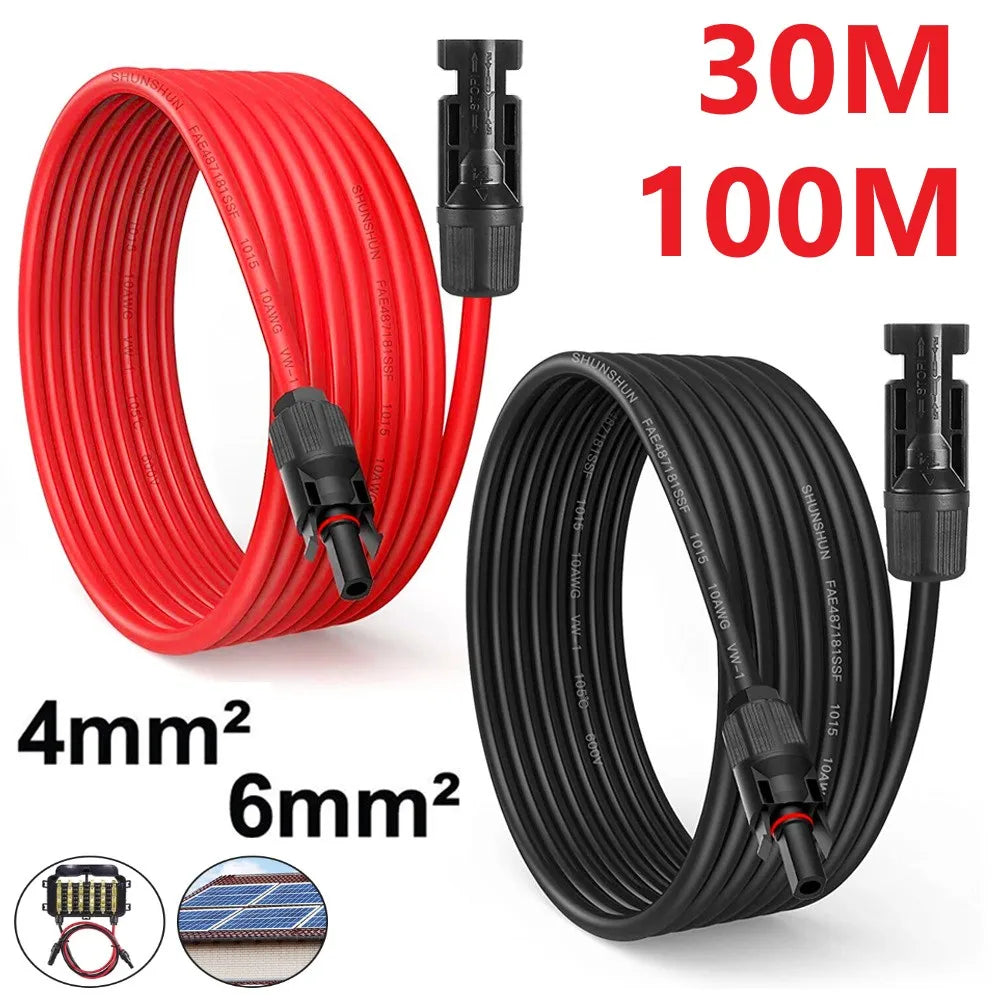

• Length: 100M/30M

• Cross-sectional area: ‎6mm²

• Color: black/Red

• Wire gauge: 10AWG

• Waterproof grade: IP68

• MaterialPlastic

• Number of cable strands Multi-strand
• Voltage:1800 Volts (DC)

• Item Weight:‎8.16 Kilograms

Feature

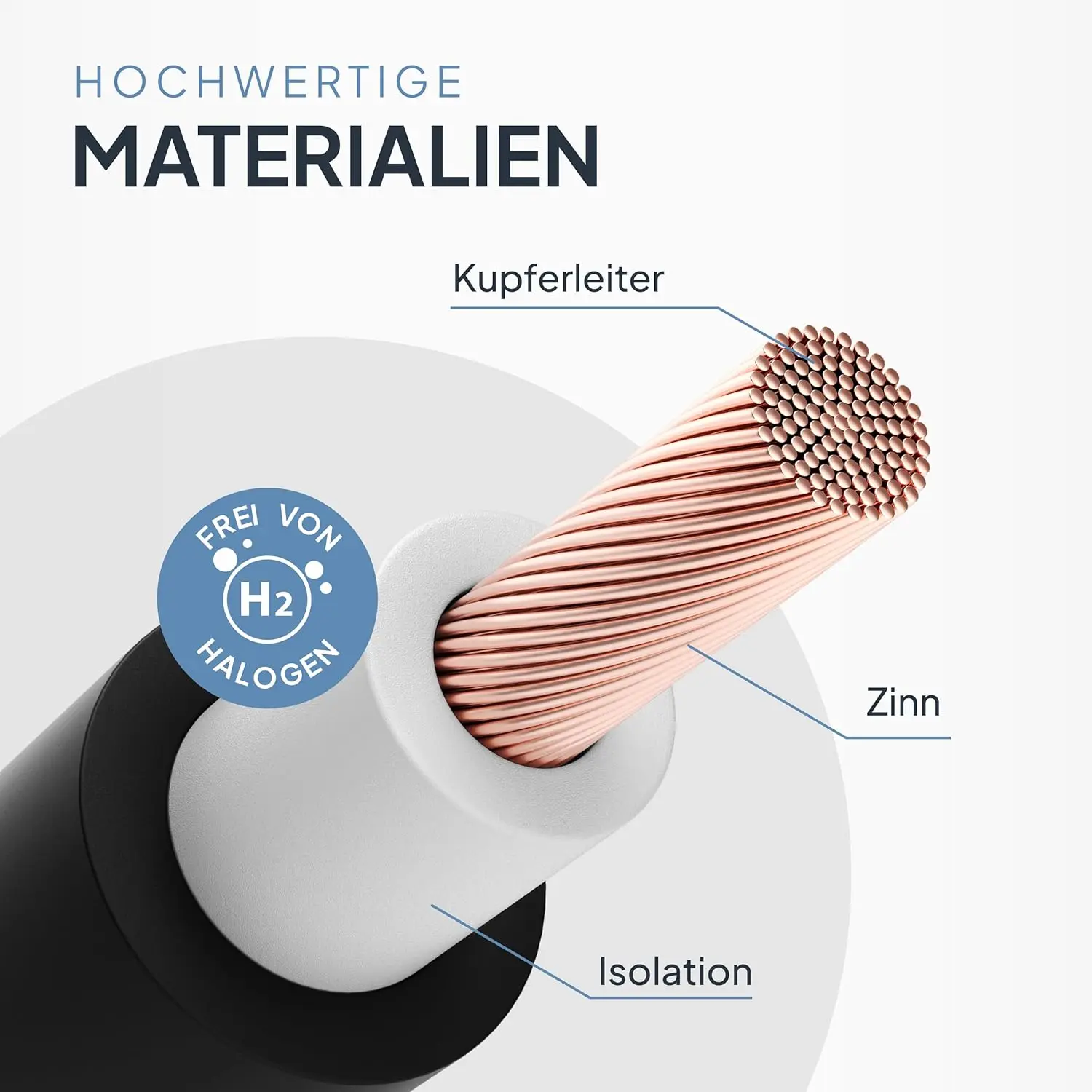

✅【Material insulation and coating】: Irradiation cross-linked polyolefin, halogen-free.

✅【6 mm² Solar Cable】: Black 100 groundable, single cable H1Z2Z2-K.

✅【Features】: Flexible, wear-resistant, corrosion-resistant, and UV-resistant.

✅【Heat Resistance】: The heat resistance test was carried out according to EN60216-1. The insulation and shell heat resistance indicators are both 120℃, and the lower ambient temperature is -40℃.

✅【Technical Data】: Rated voltage: Maximum 1000/1500 V 1,800 V, test voltage = 6500 V

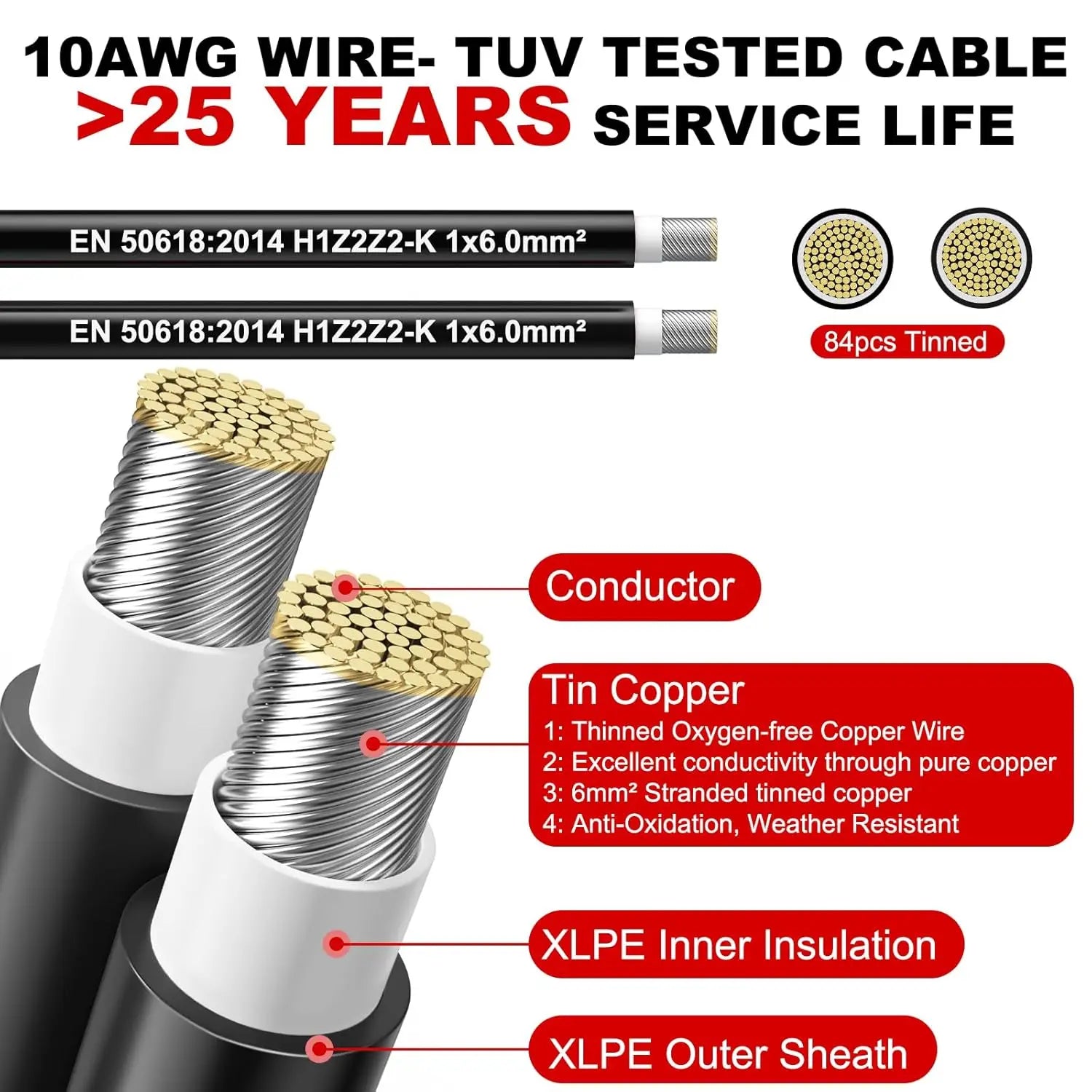

✅【Conductor】: Tinned copper stranded wire according to IEC 60228 Class 5 = Fine wire.
