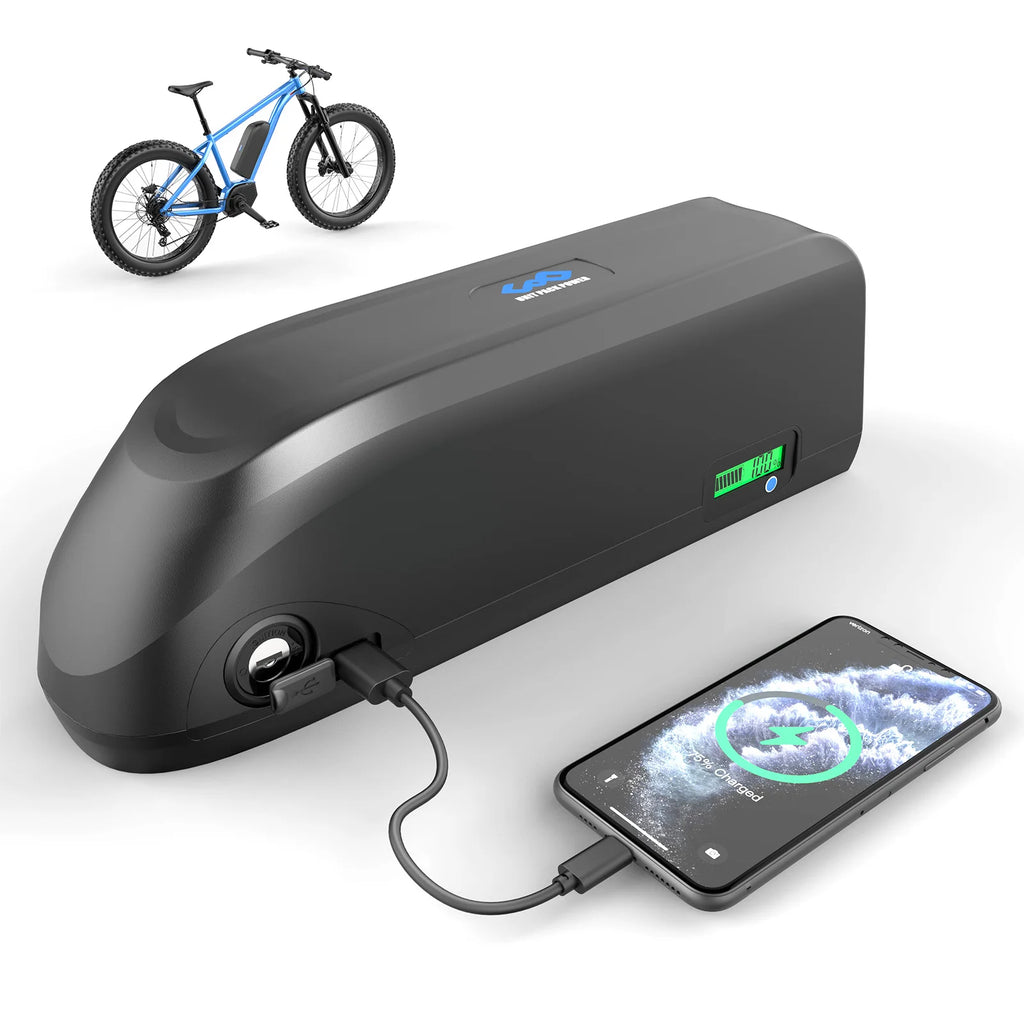

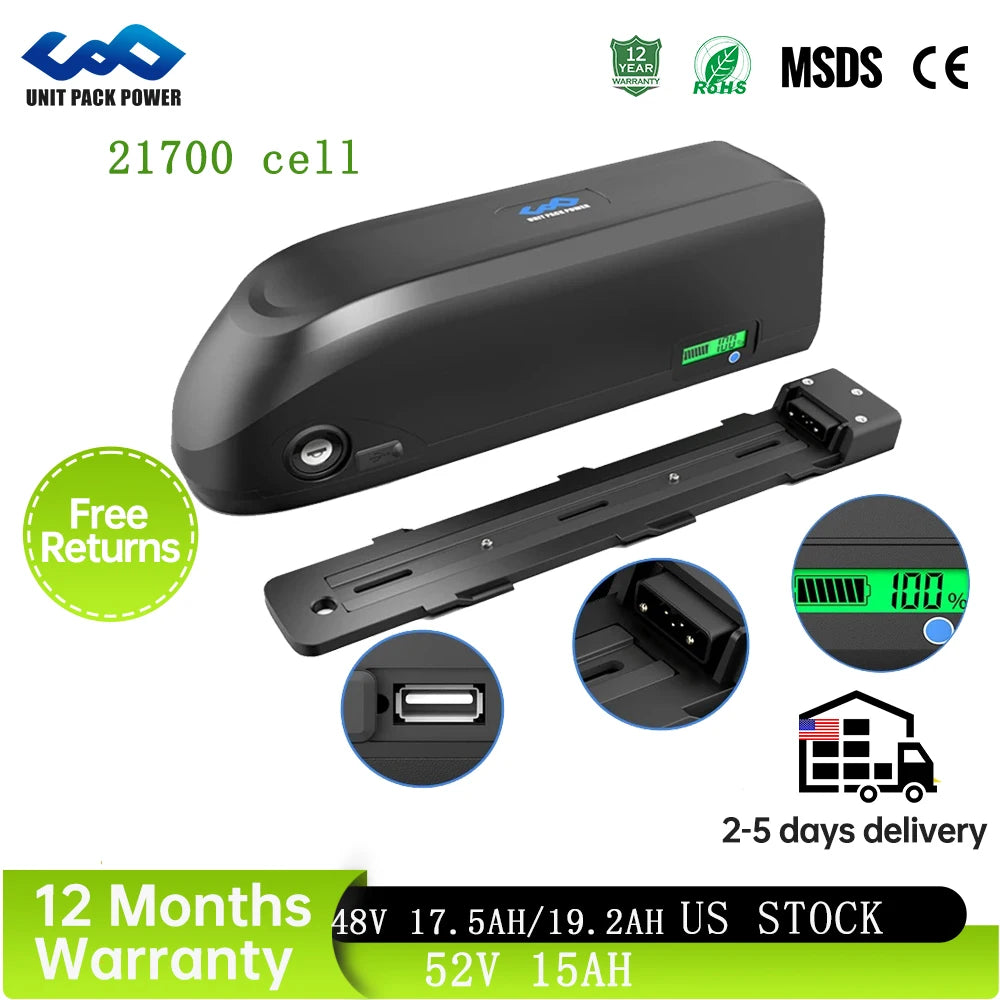

21700 Electric Bike Battery 48V 20Ah 52V 19.2Ah 6pins Downtube for 500W 750W 1000W 1500W Electric Fit for Mileage Extension

48V17.5Ah 50ASam--ng / United States

$19.290,82

$19.290,82 $0,00

21700 Electric Bike Battery 48V 20Ah 52V 19.2Ah 6pins Downtube for 500W 750W 1000W 1500W Electric Fit for Mileage Extension

$19.290,82

$19.290,82 $0,00

Color 48V17.5Ah 50ASam--ng 48V 20Ah L-G 52V 15AH40A Sam--ng 48V 20Ah 40A L-G

Ships From United States UNITED KINGDOM

SPECIFICATIONS

Brand Name: UNITPACKPOWER

Capacity: 10 - 20Ah

Certification: CE

High-concerned chemical: None

Origin: Mainland China

Type: Lithium battery

Voltage: 48v

21700 Electric Bike Battery 48V 20Ah 52V 15Ah 36V 19.2Ah 24Ah for 500W 750W 1000W 1500W Fit for Red Power Mileage Extension

Why choose our Unit Pack Power store :

1.Factory directly store : 10 years battery packing experience , from 24V, 36V 48V 52V 60V 72V to DIY Voltage/Size , all we can make it for you, Mature production technology , and filter the high consistency cells , we know how to make a reliable and safe battery for customers .

2.Battery quality : There are Grade A B C level battery , UnitPackPower only use grade A cell for battery , safest packing process ,never use cheap/false cells with false capacity/low price to attrack buyers .price = quality = customer's service , you want to get a long range/long life/safe battery for your bike , or want to get a unkown cells battery back your home?

3. Aftersalse:15days no reason free return service , 18 months warranty, when you buy a battery cannot reach to seller , this won't happen to us , We have Germany , UK , USA , Canada , Australia local service center service for you .

4. UnitPackPower batteries have insured to International Insurance, rest assured to buy.

Parameter

Parameter	36V 19.2Ah	36V 24Ah	48V 19.2Ah	52V 14.4Ah
Nominal Voltage	36V	36V	48V	52V
Nominal Capacity	19.2Ah	24Ah	19.2Ah	14.4Ah
Nominal Watt Hour	691WH	864WH	921WH	748WH
Composed Type	10S-4P	10S-5P	13S-4P	14S-3P
Built-in BMS	20A	20A	40A	30A
Fit Motor Power	0-560W max	0-560W max	0-1500W max	0-1200W max
Charge Cut-off Voltage	42V	42V	54.6V	58.8V
Discharge Cut-off Voltage	28V	28V	36.4V	39.2V
Battery Weight	4.3KG	5KG	5.2KG	4.5KG
Battery Charger	42V3A	42V3A	54.6V3A	58.8V2A
Battery Pack Cell	L-G 4800mAH 21700 cells 18months Warranty
Dimension	38597120mm	38597120mm	38597120mm	38597120mm

Parameter	36V 20Ah	36V 25Ah	48V 20Ah	52V 15Ah	48V 17.5Ah
Nominal Voltage	36V	36V	48V	52V	48V
Nominal Capacity	20Ah	25Ah	20Ah	15Ah	17.5Ah
Nominal Watt Hour	720WH	900WH	960WH	780WH	840WH
Composed Type	10S-4P	10S-5P	13S-4P	14S-3P	13S-5P
Built-in BMS	20A	20A	40A	40A	50A
Fit Motor Power	0-560W max	0-560W max	0-1500W max	0-1500W max	0-1800W max
Charge Cut-off Voltage	42V	42V	54.6V	58.8V	54.6V
Discharge Cut-off Voltage	28V	28V	36.4V	39.2V	36.4V
Battery Weight	4.3KG	5KG	5.2KG	4.5KG	5.5KG
Battery Charger	42V3A	42V3A	54.6V3A	58.8V2A	54.6V2A
Battery Pack Cell	Sam--ng 5000mAH 21700 cells 18months Warranty				Sam--ng 3500mAH 18650
Dimension	38597120mm	38597120mm	38597120mm	38597120mm	38597120mm

Parameter: 48V 17.5AH

Nominal Watt Hour: 840WH

Composed Type: 13S5P

Battery Pack Cell: Sam**ung 3500mAh 18650

Built-in BMS: 50A

Fit Motor Power: 0-1800W

Charge Cut-off Voltage: 54.6V

Discharge Cut-off Voltage: 36.4V

Battery Charger: 54.6V 2A

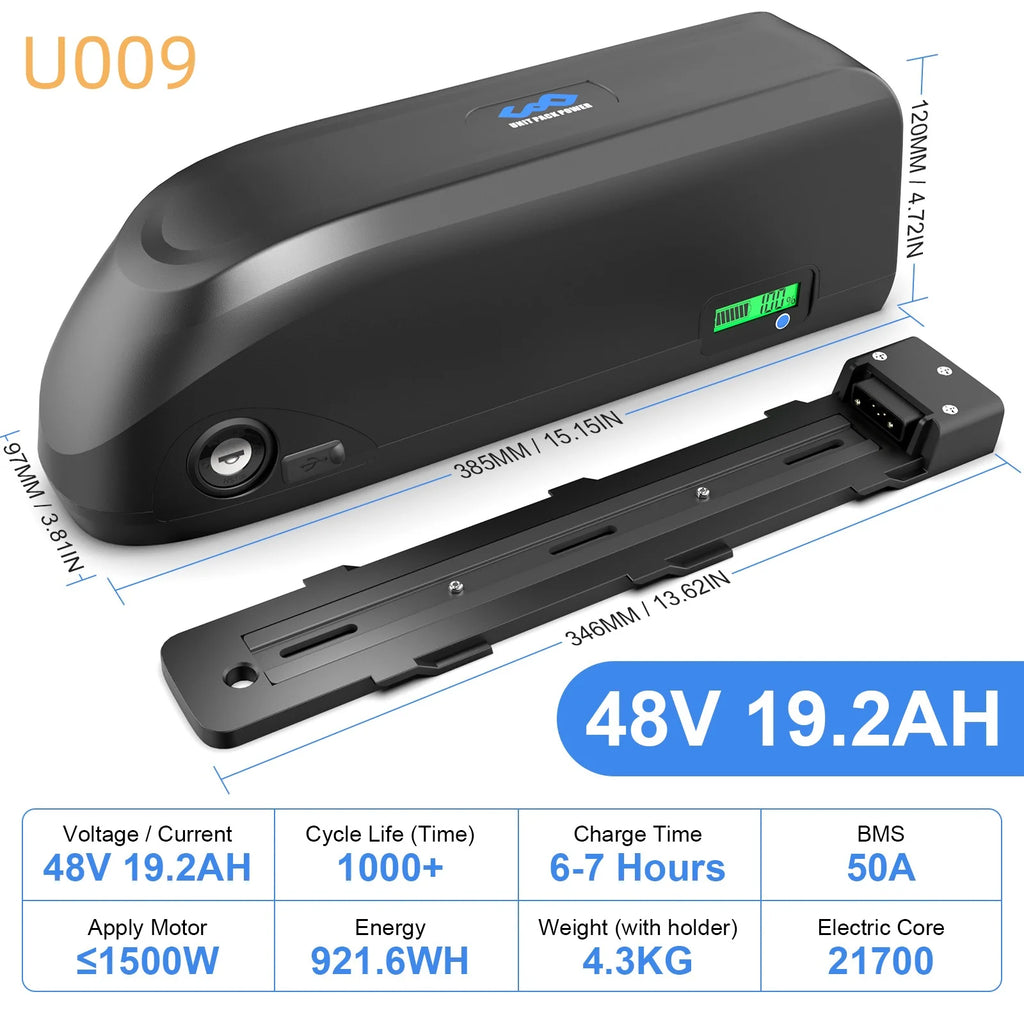

Dimension(Just battery): 385*97*120mm

Dimension

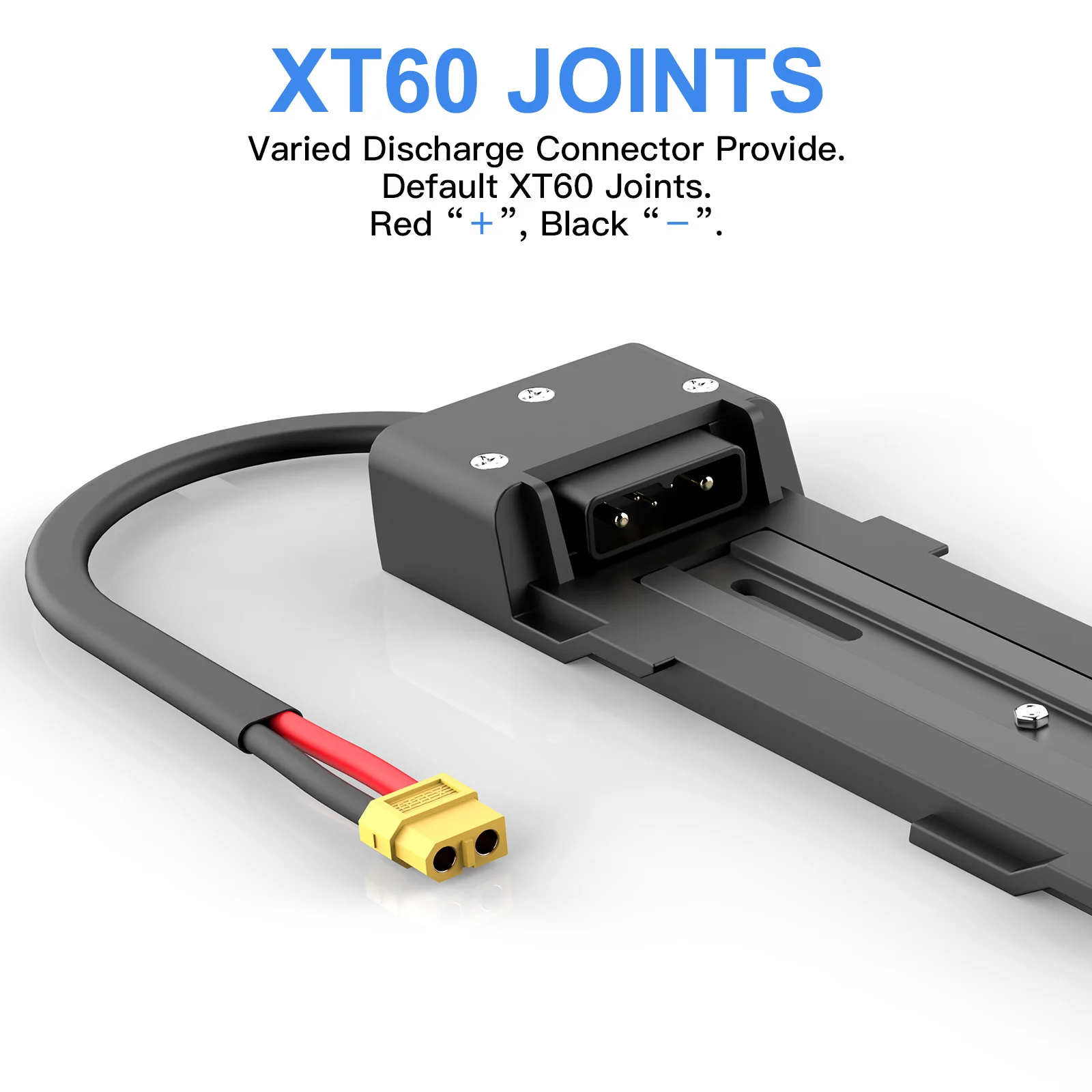

Charger Plugs and Discharge Connectors Optional

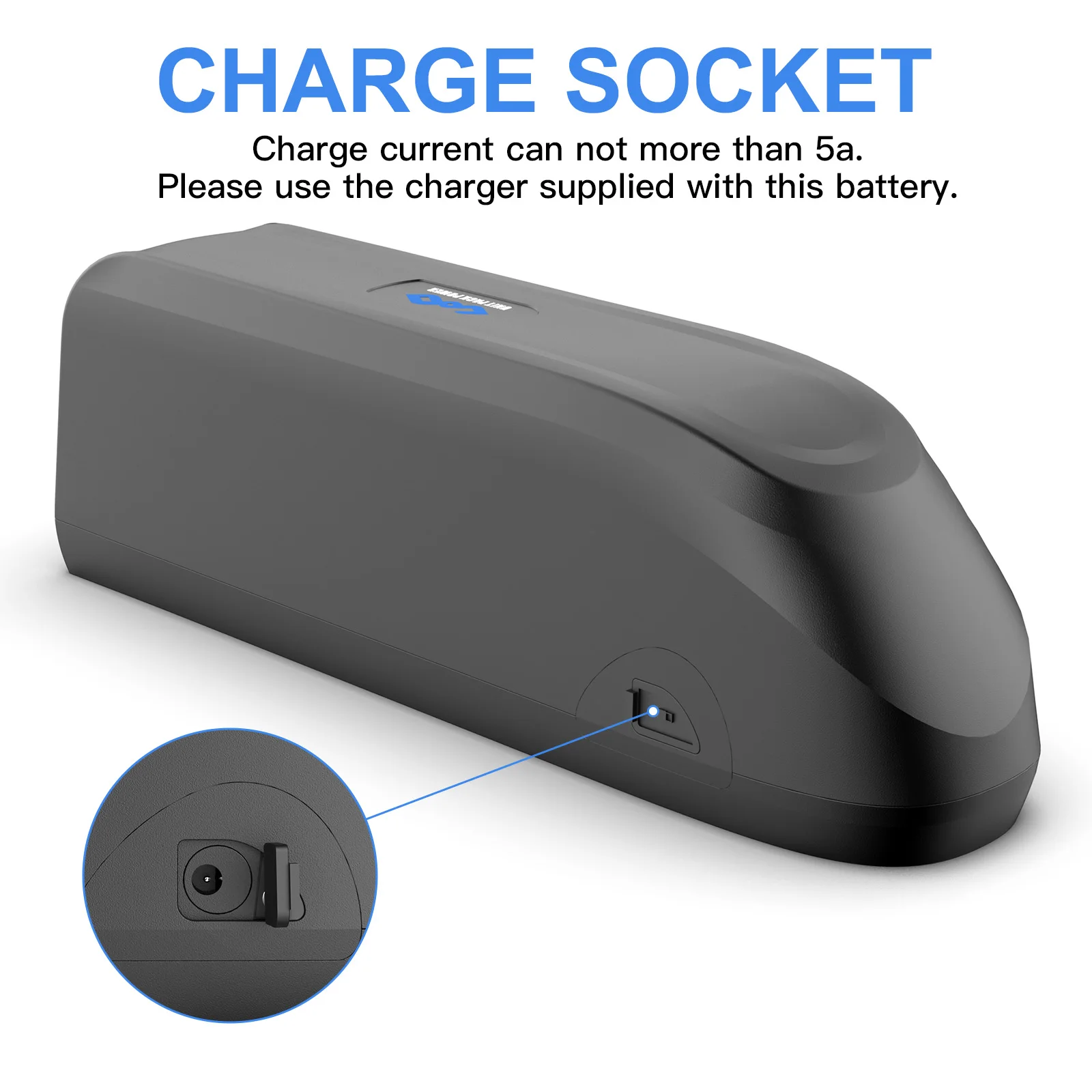

1. Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without requested.

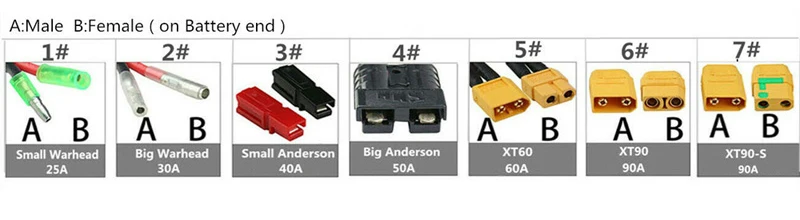

2. Discharge Connector: There are 7 kinds optional as below picture, will soldered with default female connector&extra male connector if without requested.

3. If you have any requirement about this, please leave message in your order.

Which Battery Should I choose?

This really depends on the application and can be a hard question. First you need to get a battery voltage match to your motor request , then the capacity , high capacity can make your bike longer trip but more expensive , also need to choose a right amps BMS to fit your motor . do your research if this is your first ebike kit to make sure you are getting the right battery for your needs.

What cells are your battery packs made up of?

All our packs are made up of authentic Grade A 18650 battery cells made in China , Korea or Japan. We use Sanyo Panasonic Samsung , LG or Chinese A grade brand cells and only use the very best models of these brands. and all of our battery would never

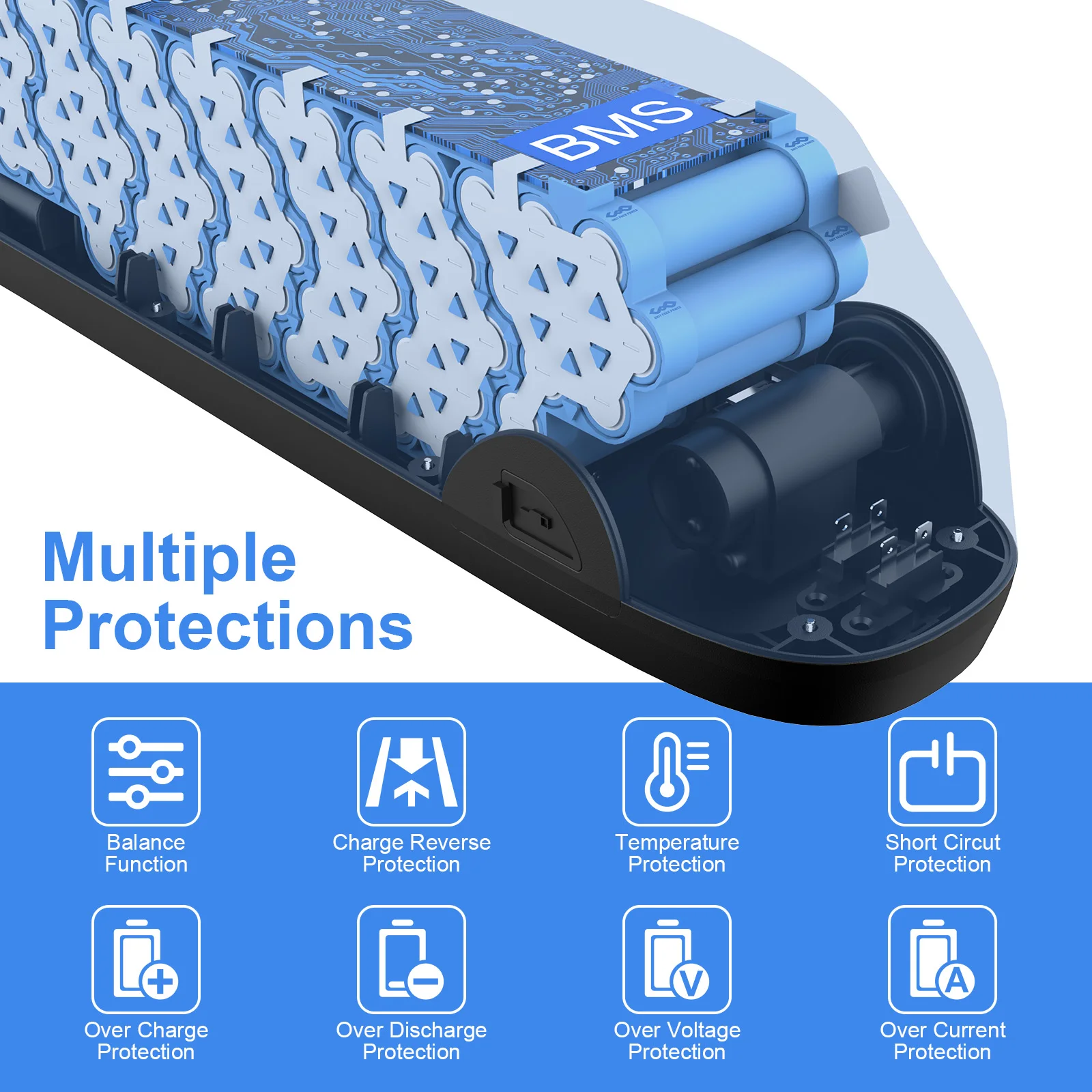

What is a BMS Battery management system.

The circuit board that makes your ebike battery “smart”. All of our packs have state of the art BMS to keep your pack safe.
