SPECIFICATIONS

Brand Name: wishiot

Hign-concerned Chemical: None

Model Number: FZ3661

Recommend Age: 14+y

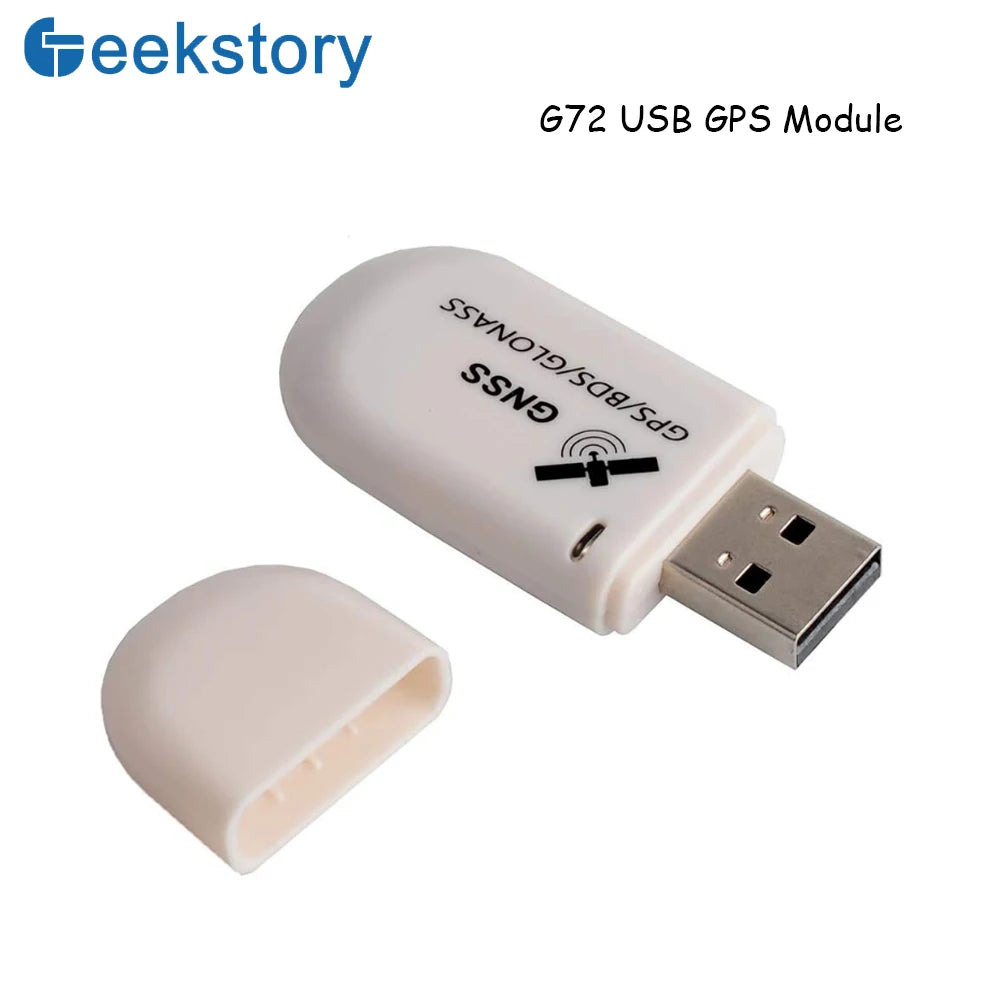

Geekstory G72 G-Mouse USB GPS Dongle M8130 Chip Glonass Beidou Receiver Module For Windows Raspberry PI

Description:

Frequency: GPS L1, 1575.42MHz/BEIDOU B1, 1561MHZ/GLONASS G1, 1602MHZ

Baud rate： 4800, 9600, 19200, 38400, 57600, 115200bps

Channel：72

Sensitivity：

Tracking: -164dBm Capture: -159dBm Cold Start - 147dBm

Cold start Average :26 seconds

Warm start Average: 24 seconds

Hot start average:1 second

Precision:

Horizontal Position: Autonomous<2.5m average SBAS < 2.0m average

Timepulse signal: RMS 30 ns

Maximum height :50000 m

Maximum speed :500 m/s

Maximum acceleration :≦4G

Update frequency :1-10 Hz

Physical characteristics：

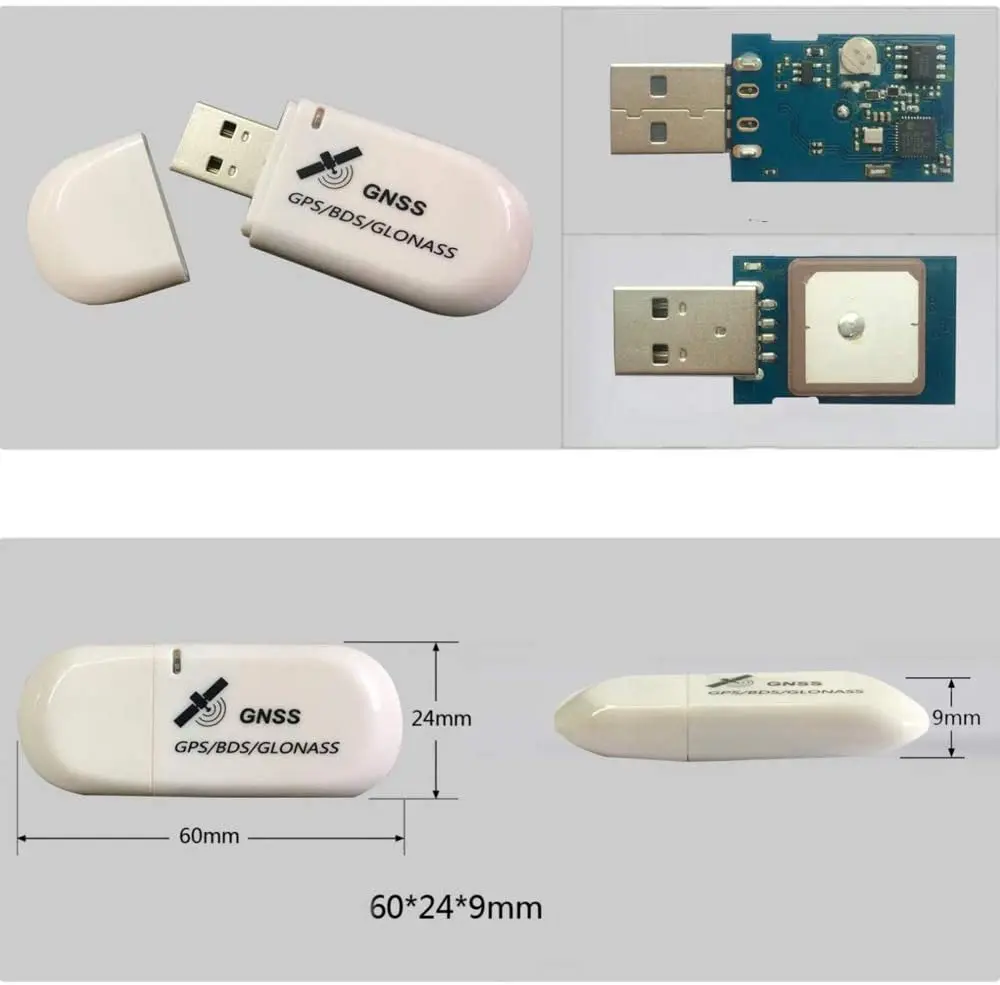

Dimensions :60X24X9mm

Working environment：

Operating temperature: -40°C to 85°C

Storage temperature :-40°C to 85°C

Support system:

Mac os,linux, Windows ME/98/CE, server 2003, server 2008, vista, XP, Windows 7, Windows 8,Windows 10, all windows series system.

Support GPS/Glonass/Beidou 3 signals

Support Windows 10/8/7/Vista/XP/CE，linux

Support Google Earth/Ovi Map

Built-in flash, USB power supply, default baud rate 9600, 1Hz output,

NMEA 0183 protocol

NMEA 0183 Output

GGA: Time, Location, Location Type

GLL: Longitude, Latitude, UTC Time

GSA: GPS receiver operation mode, positioning satellite, DOP value GSV: visible GPS satellite information, elevation, azimuth, signal-to-noise ratio (SNR) RMC: time, date, position, speed

VTG: Ground Velocity Information

Package Included:

1 X G72 USB GPS Receiver
